Dexin NDS3332 IP QAM modulator



Product Description

 Product Overview

NDS3332 32 in 1 IP QAM modulator is the latest generational Mux-scrambling-modulating all-in-one device developed by DEXIN. It has 32 multiplexing channels, 32 scrambling channels and 32 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 32 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.







 Key Features

2 GE input, Data1 and Data2 (SFP interface optional)

Supports up to 1024 channels TS over UDP/RTP,  unicast and multicast, IGMP v2\v3

Max 840Mbps for each GE input

Supports accurate PCR adjusting

Supports CA filtering, PID remapping and PSI/SI editing

Supports up to 256 PIDS remapping per channel

Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and  ETSI 103 197

Support 32 multiplexed or scrambled TS over UDP/RTP/RTSP output

32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B

Supports RS (204,188) encoding

Support Web-based Network management



Inner Principle Chart

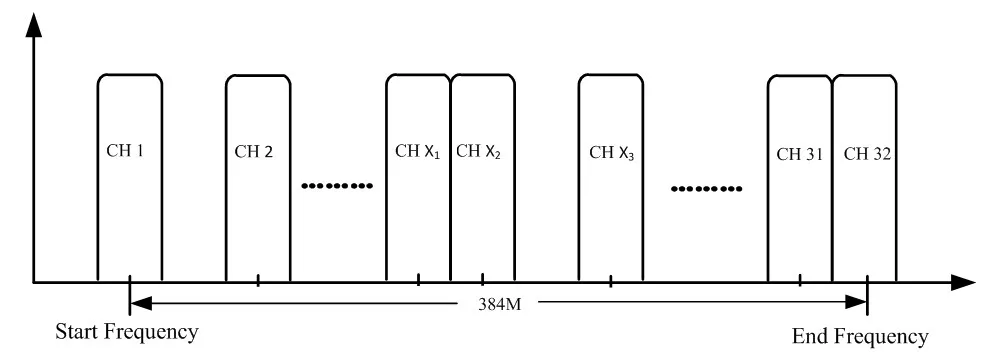

Carrier Setting Illustration



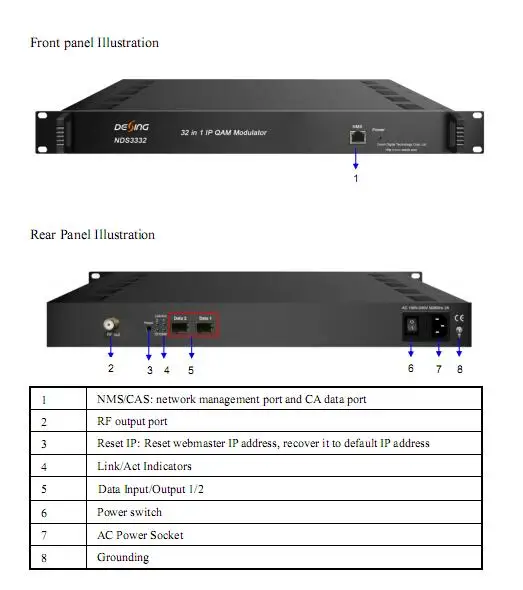

Technical Specifications

Input

Input

512×2 IP input, 2*100/1000M Ethernet Port(SFP interface optional)

Transport Protocol

TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Transmission Rate

Max 840Mbps for each GE input

Mux

Input Channel

1024

Output Channel

32

Max PIDs

256 per channel

Functions

PID remapping(auto/manually optional)

PCR accurate adjusting

PSI/SI table automatically generating

Scrambling

Parameters

Max simulscrypt CA

4

Scramble Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

Modulation

Parameters

DVB-C Modulator Sectioon

J.83A

Constellation : 16/32/64/128/256QAM

Bandwidth :8M

J.83B

Constellation : 64QAM/ 256QAM

Bandwidth :6M

QAM Channel

32 non-adjacent carrier

Modulation Standard

EN300 429/ITU-T J.83A/B(DVB-C)

Symbol Rate

5.0~7.0Msps, 1ksps stepping

Constellation

16, 32, 64 , 128, 256QAM

FEC

RS (204, 188)

RF Output

Interface

1 F typed output port for 32 carriers, 75Ω

RF Range

50~960MHz, 1kHz stepping

Output Level

-20dBm~+10dBm(87~117dbµV), 0.1dB stepping

MER

≥ 40dB

TS output

32 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M Ethernet Ports (SFP)

System

Network management software (NMS) supporting

General

Demission

420mm×440mm×44.5mm (WxLxH)

Temperature

0~45℃(operation), -20~80℃(storage)

Power Supply

AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

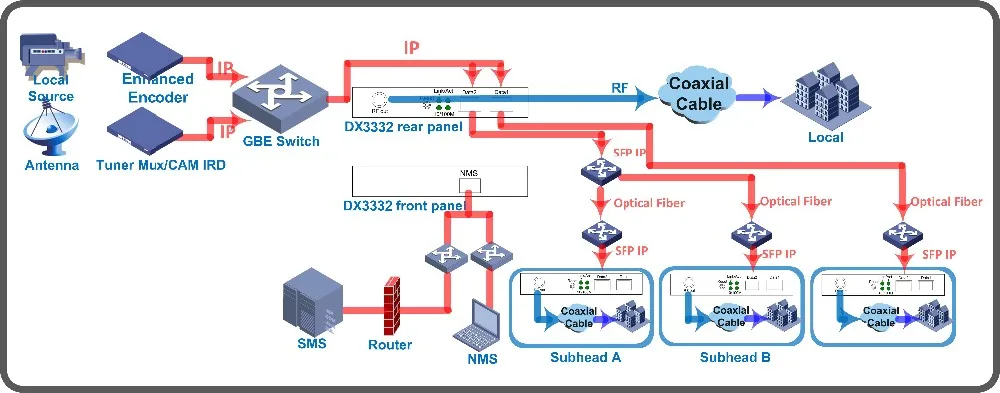

 System Connection Sample (IP Based)
